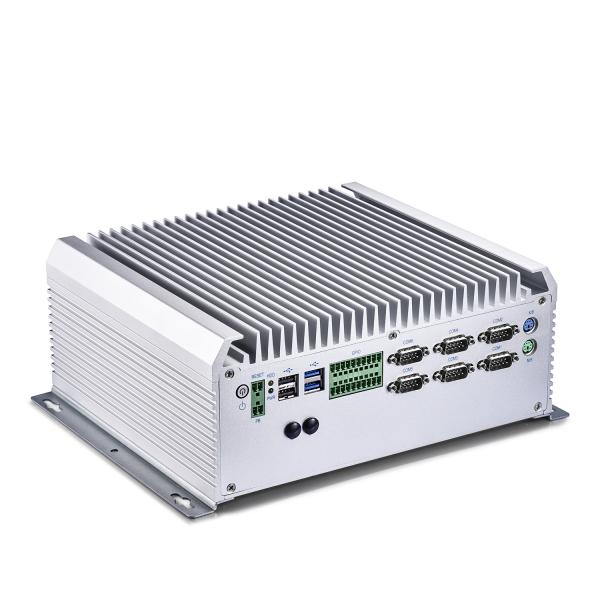

Name: MisQm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI
Brand: Yanyue
Price: 1 USD

Brand Name : Yanyue

Model Number : mis-qm77

Certification : CE, FCC

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : T/T

Supply Ability : motherboard 100000 pieces / month ; IPC 5000 sets / month

Delivery Time : According to Quantity

Packaging Details : Wooden Box

Name : Embedded Industrial PC

Hard disk rack : 1 anti-seismic hard disk rack, supporting 2.5 inch hard disks

Adapt motherboard : Dedicated motherboard

CPU/GPU : Intel I5 3320M

Memory : 4G DDR3

Hard disk : 128G MSATA

Contact Now

mis-qm77 All-aluminium fan-free embedded IPC, supporting 3rd generation i3/i5/i7 notebook CPU, 2 expansion slots

Features:

■ All-aluminium toothed fan-free design, fully sealed

■ Modular Wireless Material Design

■ Supporting 2nd and 3rd generation i3/i5/i7 notebook CPU

■ Dual Network 6 Series 10USB (4 USB 3.0)

■ Two PCI extensions or PCI+PCIE extensions

■ Support MSATA + 2.5 inch dual hard disk

■ Supporting VGA+HDMI Independent Double Display

■ 16-bit GPIO

Specification parameters				Optional configuration
Chassis	Aluminum toothed chassis, sandblasting oxidation itself			Other colours can be customized
Front	Power Switch; Power/HDD Indicator; 2USB2.0; 2USB3.0; GPIO; 6COM; PS/2KB/MS; 2 Antenna Holes
Back	DC12V input; 2RJ45 + 4USB2.0; VGA + HDMI display; 2USB3.0; Line out; Mic in; 2 slots
Hard disk rack	1 anti-seismic hard disk rack, supporting 2.5 inch hard disks
Adapt motherboard	Dedicated motherboard
CPU/GPU	Intel I5 3320M
Memory	4G DDR3			Optional 8G/16G DDR3 notebook memory
Hard disk	128G MSATA			Optional 32G/64G/256G Msata solid state hard disk; support 2.5 inch solid state hard disk and mechanical hard disk
Size	No bracket:260225104mm			Net/Gross Weight	4.5/5KG
Industrial Power Supply	Standardized 12V@5A adapter
Installation mode	Bracket installation
Work and Environment
Working temperature	0～60℃	Storage temperature	-40～75℃	Environmental humidity	0~90% air humidity, no condensation
		Vibration	5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC	GB9254-2008 class A		Shock	10g acceleration, 11ms duration
Installation Dimension Diagram

Mis-Qm77 Aluminium Fanless Embedded Compute IPC I5 3320M 2PCI
